Model：RFY-1000
Brand：Jingxin
Specifications ：
Introduction：The microplate heat sealer is compact in design, practical, easy to install, and does not require compressed air. Fast heating, real-time display of the temperature of the sealing plate, and automatic detection of the height of the microplate.
Product introduction of microplate heat sealer:

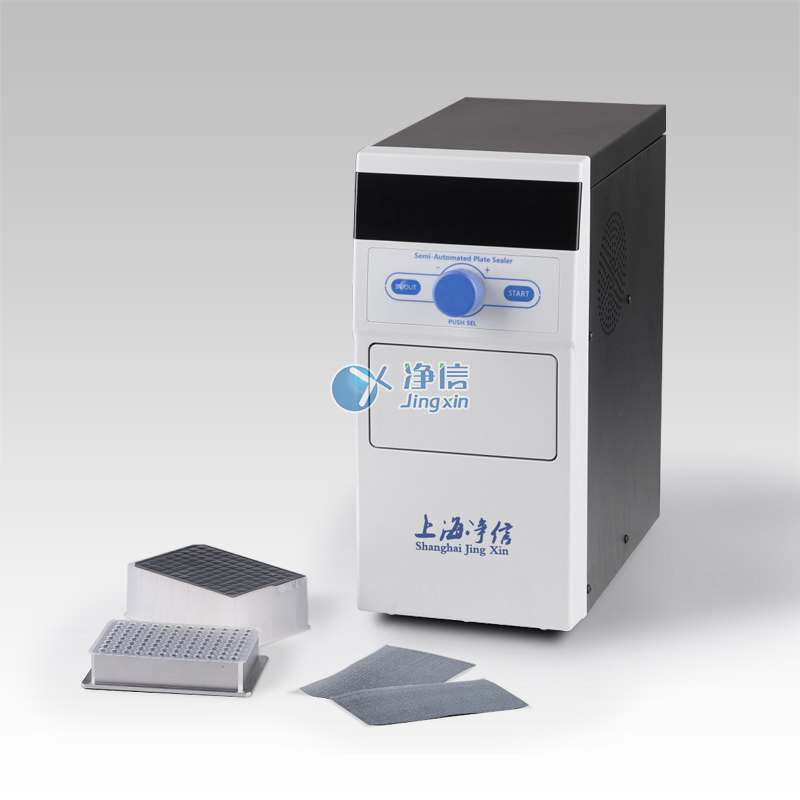

RFY-1000 Microplate Heat Sealing Apparatus, also known as plate sealing machine and film sealing apparatus, is a moderately priced and economical semi-automatic heat sealing film machine, which prevents various microplates by heat sealing various special heat sealing films. (PCR plates, deep well plates, enzyme-labeled plates and cell culture plates) Sample loss and spatial cross-contamination caused by evaporation and leakage during the detection process. Suitable for ordinary glue sealing film, heat sealing film, pierceable heat sealing film, optical heat sealing film (quantitative PCR), permanent heat sealing film. Replace manual sealing film to ensure firm sealing and uniform sealing film to avoid cross contamination.
The microplate heat sealer is compact in design, practical, easy to install, and does not require compressed air. Fast heating, real-time display of the temperature of the sealing plate, and automatic detection of the height of the microplate. Both the sealing temperature and the sealing time can be set-it is also a companion for PCR machines and quantitative PCR machines!
Features of Microplate Heat Sealer:
1. Rapid heating (up to 170℃ within 300 seconds);
2. It does not require the operator to press hard, which can achieve a neat and firm seal, and avoid crooked and loose sticking;
3. It can be adapted to various types of microplates and heat-sealing films;
4. Precise temperature, time and pressure adjustment to ensure the stability of the sealing plate;
5. The smart motor controls the access door. If a hand or other object obstructs the closing access door, the smart motor will reverse to protect the user and the instrument;
6. The automatic standby function can save energy. When there is no action within 60 minutes, the instrument enters the standby mode, and the temperature of the instrument is automatically reduced to 60°C to achieve energy saving effect;
7. When the instrument has no action for 120 minutes, the instrument enters the "deep sleep" mode, turn off the display, cut off the heater power, only a weak current is supplied to the core components of the control board, and then press any key, the instrument will resume work state;
8. With a special mechanism with smart design, the access door can be separated from the instrument to clean and maintain the heating plate;
9. Small footprint, only 370mm (depth) × 178mm (width).
Product parameters of microplate heat sealer:
Main parameters | Parameter range |
model | RFY-1000 |
UI | OLED |
Heat sealing setting temperature | 80℃～200℃ |
Temperature control accuracy | 1℃ |
Sealing time | 0.5s～9.9s，0.1s Increase |
The heating body cools down when sealing the film | ≤2℃, and return to normal within 25 seconds |
Heating principle | Electric heating tube heating |
input power | 300W |
Dimensions (D×W×H) | 370mm×178mm×330mm |
weight | 11.46kg |
